SKR V1.3 32bits - Configuration de Smoothieware


Bosco2509

Messages recommandés

Salut la compagnie !

Ma prochaine carte électronique, une 32 bits est commandé... je vais donc avoir besoin de vos lumières.
J'ai commencé à "manipuler" un fichier "myconfig" pour Smoothieware.
Je rappel que mes connaissances en programmation et électronique sont très limités, alors je vous remercie pour votre patience envers moi d'avance.
N'hésitez pas à me corriger si je me trompe sur un point.

Bref... j'ai créer un fichier "myconfig.txt" (via Notepad++) et j'y ai collé le contenu du fichier "config" que l'on trouve en téléchargeant le "zip" de "Smoothieware-edge", et j'ai créé en ligne 1 du fichier "config" une commande "inclure myconfig".
Je me suis aidé de cette page pour faire cela : http://smoothieware.org/configuring-smoothie

Donc à l'heure actuelle, voici le contenu du fichier "myconfig" :

Révélation

#Cr-X Barracuda
#
#
# Smoothieboard configuration file, see http://smoothieware.org/configuring-smoothie
# NOTE Lines must not exceed 132 characters, and '#' characters mean what follows is ignored
## Robot module configurations : general handling of movement G-codes and slicing into moves

# Basic motion configuration
default_feed_rate                            4000             # Default speed (mm/minute) for G1/G2/G3 moves
default_seek_rate                            4000             # Default speed (mm/minute) for G0 moves
mm_per_arc_segment                           0.0              # Fixed length for line segments that divide arcs, 0 to disable
#mm_per_line_segment                         5                # Cut lines into segments this size
mm_max_arc_error                             0.01             # The maximum error for line segments that divide arcs 0 to disable
                                                              # note it is invalid for both the above be 0
                                                              # if both are used, will use largest segment length based on radius

# Arm solution configuration : Cartesian robot. Translates mm positions into stepper positions
# See http://smoothieware.org/stepper-motors
alpha_steps_per_mm                           80               # Steps per mm for alpha ( X ) stepper
beta_steps_per_mm                            80               # Steps per mm for beta ( Y ) stepper
gamma_steps_per_mm                           1600             # Steps per mm for gamma ( Z ) stepper

# Planner module configuration : Look-ahead and acceleration configuration
# See http://smoothieware.org/motion-control
acceleration                                 3000             # Acceleration in mm/second/second.
#z_acceleration                              500              # Acceleration for Z only moves in mm/s^2, 0 uses acceleration which is the default. DO NOT SET ON A DELTA
junction_deviation                           0.05             # See http://smoothieware.org/motion-control#junction-deviation
#z_junction_deviation                        0.0              # For Z only moves, -1 uses junction_deviation, zero disables junction_deviation on z moves DO NOT SET ON A DELTA

# Cartesian axis speed limits
x_axis_max_speed                             1000            # Maximum speed in mm/min
y_axis_max_speed                             1000            # Maximum speed in mm/min
z_axis_max_speed                             100              # Maximum speed in mm/min

# Stepper module configuration
# Pins are defined as  ports, and pin numbers, appending "!" to the number will invert a pin
# See http://smoothieware.org/pin-configuration and http://smoothieware.org/pinout
alpha_step_pin                               2.0              # Pin for alpha stepper step signal
alpha_dir_pin                                0.5              # Pin for alpha stepper direction, add '!' to reverse direction
alpha_en_pin                                 0.4              # Pin for alpha enable pin
alpha_current                                1.5              # X stepper motor current
alpha_max_rate                               30000.0          # Maximum rate in mm/min

beta_step_pin                                2.1              # Pin for beta stepper step signal
beta_dir_pin                                 0.11             # Pin for beta stepper direction, add '!' to reverse direction
beta_en_pin                                  0.10             # Pin for beta enable
beta_current                                 1.5              # Y stepper motor current
beta_max_rate                                30000.0          # Maxmimum rate in mm/min

gamma_step_pin                               2.2              # Pin for gamma stepper step signal
gamma_dir_pin                                0.20             # Pin for gamma stepper direction, add '!' to reverse direction
gamma_en_pin                                 0.19             # Pin for gamma enable
gamma_current                                1.5              # Z stepper motor current
gamma_max_rate                               300.0            # Maximum rate in mm/min

## Extruder module configuration
# See http://smoothieware.org/extruder
extruder.hotend.enable                          true          # Whether to activate the extruder module at all. All configuration is ignored if false
extruder.hotend.steps_per_mm                    140           # Steps per mm for extruder stepper
extruder.hotend.default_feed_rate               600           # Default rate ( mm/minute ) for moves where only the extruder moves
extruder.hotend.acceleration                    500           # Acceleration for the stepper motor mm/sec²
extruder.hotend.max_speed                       50            # Maximum speed in mm/s

extruder.hotend.step_pin                        2.3           # Pin for extruder step signal
extruder.hotend.dir_pin                         0.22          # Pin for extruder dir signal ( add '!' to reverse direction )
extruder.hotend.en_pin                          0.21          # Pin for extruder enable signal

# Extruder offset
#extruder.hotend.x_offset                        0            # X offset from origin in mm
#extruder.hotend.y_offset                        0            # Y offset from origin in mm
#extruder.hotend.z_offset                        0            # Z offset from origin in mm

# Firmware retract settings when using G10/G11, these are the defaults if not defined, must be defined for each extruder if not using the defaults
#extruder.hotend.retract_length                  3            # Retract length in mm
#extruder.hotend.retract_feedrate                45           # Retract feedrate in mm/sec
#extruder.hotend.retract_recover_length          0            # Additional length for recover
#extruder.hotend.retract_recover_feedrate        8            # Recover feedrate in mm/sec (should be less than retract feedrate)
#extruder.hotend.retract_zlift_length            0            # Z-lift on retract in mm, 0 disables
#extruder.hotend.retract_zlift_feedrate          6000         # Z-lift feedrate in mm/min (Note mm/min NOT mm/sec)

delta_current                                    1.5          # First extruder stepper motor current

# Second extruder module configuration
#extruder.hotend2.enable                         true         # Whether to activate the extruder module at all. All configuration is ignored if false
#extruder.hotend2.steps_per_mm                   140          # Steps per mm for extruder stepper
#extruder.hotend2.default_feed_rate              600          # Default rate ( mm/minute ) for moves where only the extruder moves
#extruder.hotend2.acceleration                   500          # Acceleration for the stepper motor, as of 0.6, arbitrary ratio
#extruder.hotend2.max_speed                      50           # mm/s

#extruder.hotend2.step_pin                       2.8          # Pin for extruder step signal
#extruder.hotend2.dir_pin                        2.13         # Pin for extruder dir signal ( add '!' to reverse direction )
#extruder.hotend2.en_pin                         4.29         # Pin for extruder enable signal

#extruder.hotend2.x_offset                       0            # x offset from origin in mm
#extruder.hotend2.y_offset                       25.0         # y offset from origin in mm
#extruder.hotend2.z_offset                       0            # z offset from origin in mm

#epsilon_current                                 1.5          # Second extruder stepper motor current


## Laser module configuration
# See http://smoothieware.org/laser
laser_module_enable                           false           # Whether to activate the laser module at all
laser_module_pwm_pin                          2.5             # This pin will be PWMed to control the laser.
                                                              # Only pins 2.0, 2.1, 2.2, 2.3, 2.4, 2.5, 1.18, 1.20, 1.21, 1.23, 1.24, 1.26, 3.25 and 3.26
                                                              # can be used since laser requires hardware PWM, see http://smoothieware.org/pinout
#laser_module_ttl_pin                           1.30            # This pin turns on when the laser turns on, and off when the laser turns off.
#laser_module_maximum_power                   1.0             # This is the maximum duty cycle that will be applied to the laser
#laser_module_minimum_power                   0.0             # This is a value just below the minimum duty cycle that keeps the laser
                                                              # active without actually burning.
#laser_module_default_power                   0.8             # This is the default laser power that will be used for cuts if a power has not been specified.  The value is a scale between
                                                              # the maximum and minimum power levels specified above
#laser_module_pwm_period                      20              # This sets the pwm frequency as the period in microseconds

## Temperature control configuration
# See http://smoothieware.org/temperaturecontrol

# First hotend configuration
temperature_control.hotend.enable            true             # Whether to activate this ( "hotend" ) module at all.
temperature_control.hotend.thermistor_pin    0.23             # Pin for the thermistor to read
temperature_control.hotend.heater_pin        2.7              # Pin that controls the heater, set to nc if a readonly thermistor is being defined
temperature_control.hotend.thermistor        EPCOS100K        # See http://smoothieware.org/temperaturecontrol#toc5
#temperature_control.hotend.beta             4066             # Or set the beta value
temperature_control.hotend.set_m_code        104              # M-code to set the temperature for this module
temperature_control.hotend.set_and_wait_m_code 109            # M-code to set-and-wait for this module
temperature_control.hotend.designator        T                # Designator letter for this module
#temperature_control.hotend.max_temp         300              # Set maximum temperature - Will prevent heating above 300 by default
#temperature_control.hotend.min_temp         0                # Set minimum temperature - Will prevent heating below if set

# Safety control is enabled by default and can be overidden here, the values show the defaults
# See http://smoothieware.org/temperaturecontrol#runaway
#temperature_control.hotend.runaway_heating_timeout      900  # How long it can take to heat up, max is 2040 seconds.
#temperature_control.hotend.runaway_cooling_timeout        0  # How long it can take to cool down if temp is set lower, max is 2040 seconds
#temperature_control.hotend.runaway_range                20   # How far from the set temperature it can wander, max setting is 63°C

# PID configuration
# See http://smoothieware.org/temperaturecontrol#pid
#temperature_control.hotend.p_factor         13.7             # P ( proportional ) factor
#temperature_control.hotend.i_factor         0.097            # I ( integral ) factor
#temperature_control.hotend.d_factor         24               # D ( derivative ) factor

#temperature_control.hotend.max_pwm          64               # Max pwm, 64 is a good value if driving a 12v resistor with 24v.

# Second hotend configuration
#temperature_control.hotend2.enable            true           # Whether to activate this ( "hotend" ) module at all.
#temperature_control.hotend2.thermistor_pin    0.25           # Pin for the thermistor to read
#temperature_control.hotend2.heater_pin        1.23           # Pin that controls the heater
#temperature_control.hotend2.thermistor        EPCOS100K      # See http://smoothieware.org/temperaturecontrol#thermistor
##temperature_control.hotend2.beta             4066           # or set the beta value
#temperature_control.hotend2.set_m_code        104            # M-code to set the temperature for this module
#temperature_control.hotend2.set_and_wait_m_code 109          # M-code to set-and-wait for this module
#temperature_control.hotend2.designator        T1             # Designator letter for this module

#temperature_control.hotend2.p_factor          13.7           # P ( proportional ) factor
#temperature_control.hotend2.i_factor          0.097          # I ( integral ) factor
#temperature_control.hotend2.d_factor          24             # D ( derivative ) factor

#temperature_control.hotend2.max_pwm          64              # Max pwm, 64 is a good value if driving a 12v resistor with 24v.

temperature_control.bed.enable               true             # Whether to activate this ( "hotend" ) module at all.
temperature_control.bed.thermistor_pin       0.24             # Pin for the thermistor to read
temperature_control.bed.heater_pin           2.5              # Pin that controls the heater
temperature_control.bed.thermistor           Honeywell100K    # See http://smoothieware.org/temperaturecontrol#thermistor
#temperature_control.bed.beta                3974             # Or set the beta value
temperature_control.bed.set_m_code           140              # M-code to set the temperature for this module
temperature_control.bed.set_and_wait_m_code  190              # M-code to set-and-wait for this module
temperature_control.bed.designator           B                # Designator letter for this module

# Bang-bang ( simplified ) control
# See http://smoothieware.org/temperaturecontrol#bang-bang
#temperature_control.bed.bang_bang           false            # Set to true to use bang bang control rather than PID
#temperature_control.bed.hysteresis          2.0              # Set to the temperature in degrees C to use as hysteresis

## Switch modules
# See http://smoothieware.org/switch

# Switch module for fan control
switch.fan.enable                            true             # Enable this module
switch.fan.input_on_command                  M106             # Command that will turn this switch on
switch.fan.input_off_command                 M107             # Command that will turn this switch off
switch.fan.output_pin                        2.6              # Pin this module controls
switch.fan.output_type                       pwm              # PWM output settable with S parameter in the input_on_comand
#switch.fan.max_pwm                          255              # Set max pwm for the pin default is 255

#switch.misc.enable                          true             # Enable this module
#switch.misc.input_on_command                M42              # Command that will turn this switch on
#switch.misc.input_off_command               M43              # Command that will turn this switch off
#switch.misc.output_pin                      2.4              # Pin this module controls
#switch.misc.output_type                     digital          # Digital means this is just an on or off pin

## Temperatureswitch
# See http://smoothieware.org/temperatureswitch
# Automatically toggle a switch at a specified temperature. Different ones of these may be defined to monitor different temperatures and switch different swithxes
# Useful to turn on a fan or water pump to cool the hotend
#temperatureswitch.hotend.enable              true            #
#temperatureswitch.hotend.designator          T               # first character of the temperature control designator to use as the temperature sensor to monitor
#temperatureswitch.hotend.switch              misc            # select which switch to use, matches the name of the defined switch
#temperatureswitch.hotend.threshold_temp      60.0            # temperature to turn on (if rising) or off the switch
#temperatureswitch.hotend.heatup_poll         15              # poll heatup at 15 sec intervals
#temperatureswitch.hotend.cooldown_poll       60              # poll cooldown at 60 sec intervals

## Endstops
# See http://smoothieware.org/endstops
endstops_enable                              true             # The endstop module is enabled by default and can be disabled here
#corexy_homing                               false            # Set to true if homing on a hbot or corexy
alpha_min_endstop                            1.24^            # Pin to read min endstop, add a ! to invert if endstop is NO connected to ground
#alpha_max_endstop                           1.25^            # Pin to read max endstop, uncomment this and comment the above if using max endstops
alpha_homing_direction                       home_to_min      # Or set to home_to_max and set alpha_max and uncomment the alpha_max_endstop
alpha_min                                    0                # This gets loaded as the current position after homing when home_to_min is set
alpha_max                                    200              # This gets loaded as the current position after homing when home_to_max is set
beta_min_endstop                             1.26^            # Pin to read min endstop, add a ! to invert if endstop is NO connected to ground
#beta_max_endstop                            1.27^            # Pin to read max endstop, uncomment this and comment the above if using max endstops
beta_homing_direction                        home_to_min      # Or set to home_to_max and set alpha_max and uncomment the alpha_max_endstop
beta_min                                     0                # This gets loaded as the current position after homing when home_to_min is set
beta_max                                     200              # This gets loaded as the current position after homing when home_to_max is set
gamma_min_endstop                            1.28^            # Pin to read min endstop, add a ! to invert if endstop is NO connected to ground
#gamma_max_endstop                           1.29^            # Pin to read max endstop, uncomment this and comment the above if using max endstops
gamma_homing_direction                       home_to_min      # Or set to home_to_max and set alpha_max and uncomment the alpha_max_endstop
gamma_min                                    0                # This gets loaded as the current position after homing when home_to_min is set
gamma_max                                    200              # This gets loaded as the current position after homing when home_to_max is set

alpha_max_travel                             500              # Max travel in mm for alpha/X axis when homing
beta_max_travel                              500              # Max travel in mm for beta/Y axis when homing
gamma_max_travel                             500              # Max travel in mm for gamma/Z axis when homing

# Optional enable limit switches, actions will stop if any enabled limit switch is triggered
#alpha_limit_enable                          false            # Set to true to enable X min and max limit switches
#beta_limit_enable                           false            # Set to true to enable Y min and max limit switches
#gamma_limit_enable                          false            # Set to true to enable Z min and max limit switches

# Endstops home at their fast feedrate first, then once the endstop is found they home again at their slow feedrate for accuracy
alpha_fast_homing_rate_mm_s                  50               # Alpha/X fast homing feedrate in mm/second
alpha_slow_homing_rate_mm_s                  25               # Alpha/X slow homing feedrate in mm/second
beta_fast_homing_rate_mm_s                   50               # Beta/Y  fast homing feedrate in mm/second
beta_slow_homing_rate_mm_s                   25               # Beta/Y  slow homing feedrate in mm/second
gamma_fast_homing_rate_mm_s                  4                # Gamma/Z fast homing feedrate in mm/second
gamma_slow_homing_rate_mm_s                  2                # Gamma/Z slow homing feedrate in mm/second

alpha_homing_retract_mm                      5                # Distance to retract from the endstop after it is hit for alpha/X
beta_homing_retract_mm                       5                # Distance to retract from the endstop after it is hit for beta/Y
gamma_homing_retract_mm                      1                # Distance to retract from the endstop after it is hit for gamma/Z


# Optional enable limit switches, actions will stop if any enabled limit switch is triggered (all are set for delta)
#alpha_limit_enable                          false            # Set to true to enable X min and max limit switches
#beta_limit_enable                           false            # Set to true to enable Y min and max limit switches
#gamma_limit_enable                          false            # Set to true to enable Z min and max limit switches

# Optional order in which axis will home, default is they all home at the same time,
# If this is set it will force each axis to home one at a time in the specified order
#homing_order                                 XYZ              # X axis followed by Y then Z last
#move_to_origin_after_home                    false            # Move XY to 0,0 after homing
#endstop_debounce_count                       100              # Uncomment if you get noise on your endstops, default is 100
#endstop_debounce_ms                          1                # Uncomment if you get noise on your endstops, default is 1 millisecond debounce
#home_z_first                                 true             # Uncomment and set to true to home the Z first, otherwise Z homes after XY

# End of endstop config
# Delete the above endstop section and uncomment next line and copy and edit Snippets/abc-endstop.config file to enable endstops for ABC axis
#include abc-endstop.config

## Z-probe
# See http://smoothieware.org/zprobe
zprobe.enable                                false           # Set to true to enable a zprobe
zprobe.probe_pin                             1.28!^          # Pin probe is attached to, if NC remove the !
zprobe.slow_feedrate                         5               # Mm/sec probe feed rate
#zprobe.debounce_ms                          1               # Set if noisy
zprobe.fast_feedrate                         100             # Move feedrate mm/sec
zprobe.probe_height                          5               # How much above bed to start probe
#gamma_min_endstop                           nc              # Normally 1.28. Change to nc to prevent conflict,

# Levelling strategy
# Example for 3-point levelling strategy, see wiki documentation for other strategies
#leveling-strategy.three-point-leveling.enable         true        # a leveling strategy that probes three points to define a plane and keeps the Z parallel to that plane
#leveling-strategy.three-point-leveling.point1         100.0,0.0   # the first probe point (x,y) optional may be defined with M557
#leveling-strategy.three-point-leveling.point2         200.0,200.0 # the second probe point (x,y)
#leveling-strategy.three-point-leveling.point3         0.0,200.0   # the third probe point (x,y)
#leveling-strategy.three-point-leveling.home_first     true        # home the XY axis before probing
#leveling-strategy.three-point-leveling.tolerance      0.03        # the probe tolerance in mm, anything less that this will be ignored, default is 0.03mm
#leveling-strategy.three-point-leveling.probe_offsets  0,0,0       # the probe offsets from nozzle, must be x,y,z, default is no offset
#leveling-strategy.three-point-leveling.save_plane     false       # set to true to allow the bed plane to be saved with M500 default is false

## Panel
# See http://smoothieware.org/panel
# Please find your panel on the wiki and copy/paste the right configuration here
panel.enable                                 false             # Set to true to enable the panel code

# Example for reprap discount GLCD
# on glcd EXP1 is to left and EXP2 is to right, pin 1 is bottom left, pin 2 is top left etc.
# +5v is EXP1 pin 10, Gnd is EXP1 pin 9
#panel.lcd                                   reprap_discount_glcd     #
#panel.spi_channel                           0                 # SPI channel to use  ; GLCD EXP1 Pins 3,5 (MOSI, SCLK)
#panel.spi_cs_pin                            0.16              # SPI chip select     ; GLCD EXP1 Pin 4
#panel.encoder_a_pin                         3.25!^            # Encoder pin         ; GLCD EXP2 Pin 3
#panel.encoder_b_pin                         3.26!^            # Encoder pin         ; GLCD EXP2 Pin 5
#panel.click_button_pin                      1.30!^            # Click button        ; GLCD EXP1 Pin 2
#panel.buzz_pin                              1.31              # Pin for buzzer      ; GLCD EXP1 Pin 1
#panel.back_button_pin                       2.11!^            # Back button         ; GLCD EXP2 Pin 8

panel.menu_offset                            0                 # Some panels will need 1 here

panel.alpha_jog_feedrate                     6000              # X jogging feedrate in mm/min
panel.beta_jog_feedrate                      6000              # Y jogging feedrate in mm/min
panel.gamma_jog_feedrate                     200               # Z jogging feedrate in mm/min

panel.hotend_temperature                     185               # Temp to set hotend when preheat is selected
panel.bed_temperature                        60                # Temp to set bed when preheat is selected

## Custom menus : Example of a custom menu entry, which will show up in the Custom entry.
# NOTE _ gets converted to space in the menu and commands, | is used to separate multiple commands
custom_menu.power_on.enable                true              #
custom_menu.power_on.name                  Power_on          #
custom_menu.power_on.command               M80               #

custom_menu.power_off.enable               true              #
custom_menu.power_off.name                 Power_off         #
custom_menu.power_off.command              M81               #


## Network settings
# See http://smoothieware.org/network
network.enable                               false            # Enable the ethernet network services
network.webserver.enable                     true             # Enable the webserver
network.telnet.enable                        true             # Enable the telnet server
network.ip_address                           auto             # Use dhcp to get ip address
# Uncomment the 3 below to manually setup ip address
#network.ip_address                           192.168.3.222   # The IP address
#network.ip_mask                              255.255.255.0   # The ip mask
#network.ip_gateway                           192.168.3.1     # The gateway address
#network.mac_override                         xx.xx.xx.xx.xx.xx  # Override the mac address, only do this if you have a conflict

## System configuration
# Serial communications configuration ( baud rate defaults to 9600 if undefined )
# For communication over the UART port, *not* the USB/Serial port
uart0.baud_rate                              115200           # Baud rate for the default hardware ( UART ) serial port

second_usb_serial_enable                     false            # This enables a second USB serial port
#leds_disable                                true             # Disable using leds after config loaded
#play_led_disable                            true             # Disable the play led

# Kill button maybe assigned to a different pin, set to the onboard pin by default
# See http://smoothieware.org/killbutton
kill_button_enable                           true             # Set to true to enable a kill button
kill_button_pin                              2.12             # Kill button pin. default is same as pause button 2.12 (2.11 is another good choice)

#msd_disable                                 false            # Disable the MSD (USB SDCARD), see http://smoothieware.org/troubleshooting#disable-msd
#dfu_enable                                  false            # For linux developers, set to true to enable DFU

# Only needed on a smoothieboard
# See http://smoothieware.org/currentcontrol
currentcontrol_module_enable                 true             # Control stepper motor current via the configuration file

config-get sd acceleration
config-set sd acceleration 1000



Rappel : C'est pour une CR-10(S), sans détecteur de fin de filament, avec double axe Z, double extrusion, moteurs Hanpose 17HS8401 et... Pas de BL-Touch.

Si vous avez des suggestions sur des modifications à faire... n'hésitez pas.

Côté Hardware, Carte électronique :
J'hésite encore un peu sur la méthode... car j'ai commandé dans le kit des TMC2208... et j'hésite si il faut faire une installation "STEP/DIR Mode" ou "UART-Mode"... la différence réside sur la position des cavaliers à installer :



Mais je verrais cela une fois la carte en ma possession...



Modifié (le) par Bosco2509
Lien vers le commentaire
Partager sur d’autres sites

Il y a 2 heures, Bosco2509 a dit :

Mais je verrais cela une fois la carte en ma possession...

As tu un schéma de cette carte avec les numéro de pins ? ça aiderai pour la configurer dans ce fichier

Il me semble avoir vu dans l'autre post que ta carte a déjà un firmware chargé, donc je pense qu'elle a une carte SD avec un fichier config (ou qu'il est fourni), bien faire un double de ce fichier (on ne sait jamais) car là on pourra voir les différents pins utilisés

edit je viens de le trouver ça pourra servir 😉


Modifié (le) par pascal_lb
Lien vers le commentaire
Partager sur d’autres sites

il y a 14 minutes, pascal_lb a dit :

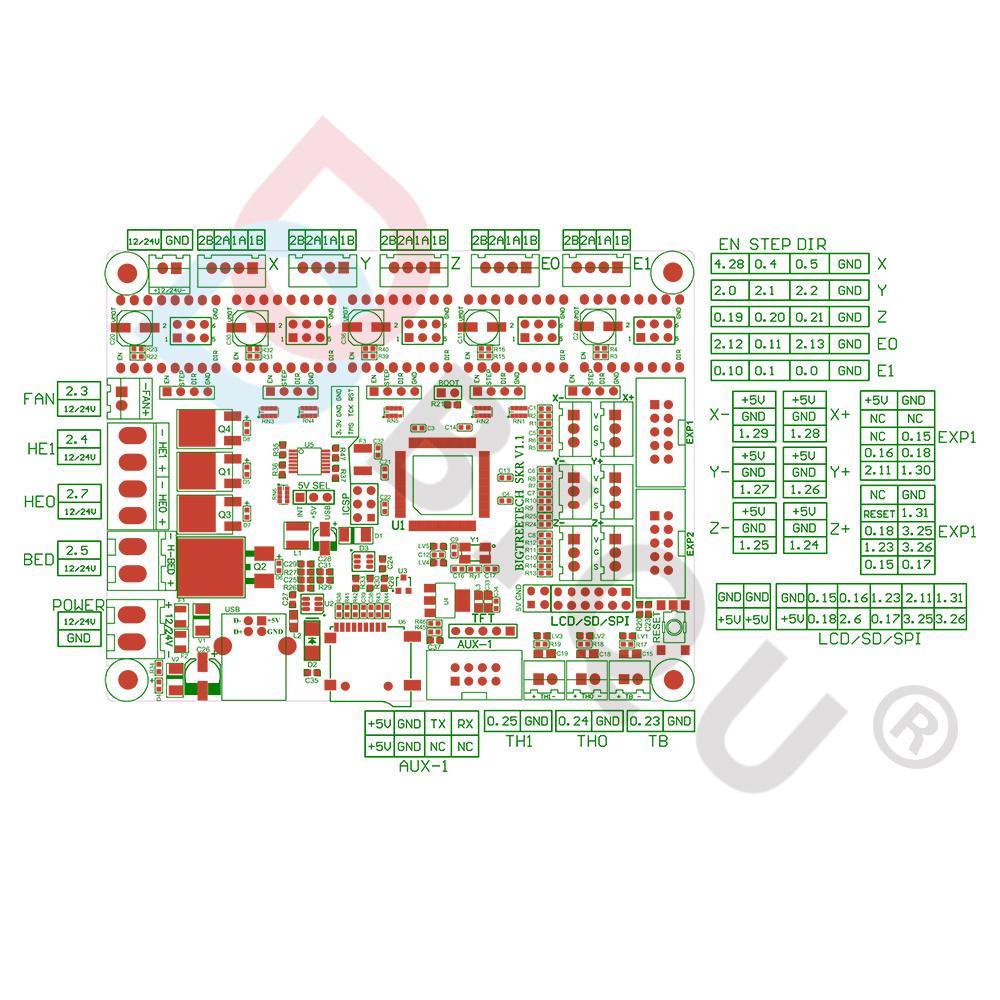

As tu un schéma de cette carte avec les numéro de pins ? ça aiderai pour la configurer dans ce fichier

Il me semble avoir vu dans l'autre post que ta carte a déjà un firmware chargé, donc je pense qu'elle a une carte SD avec un fichier config (ou qu'il est fourni), bien faire un double de ce fichier (on ne sait jamais) car là on pourra voir les différents pins utilisés

edit je viens de le trouver ça pourra servir 😉


Oui... c'est bien ce schéma... j'en avais déjà fait une copie sur mon PC.

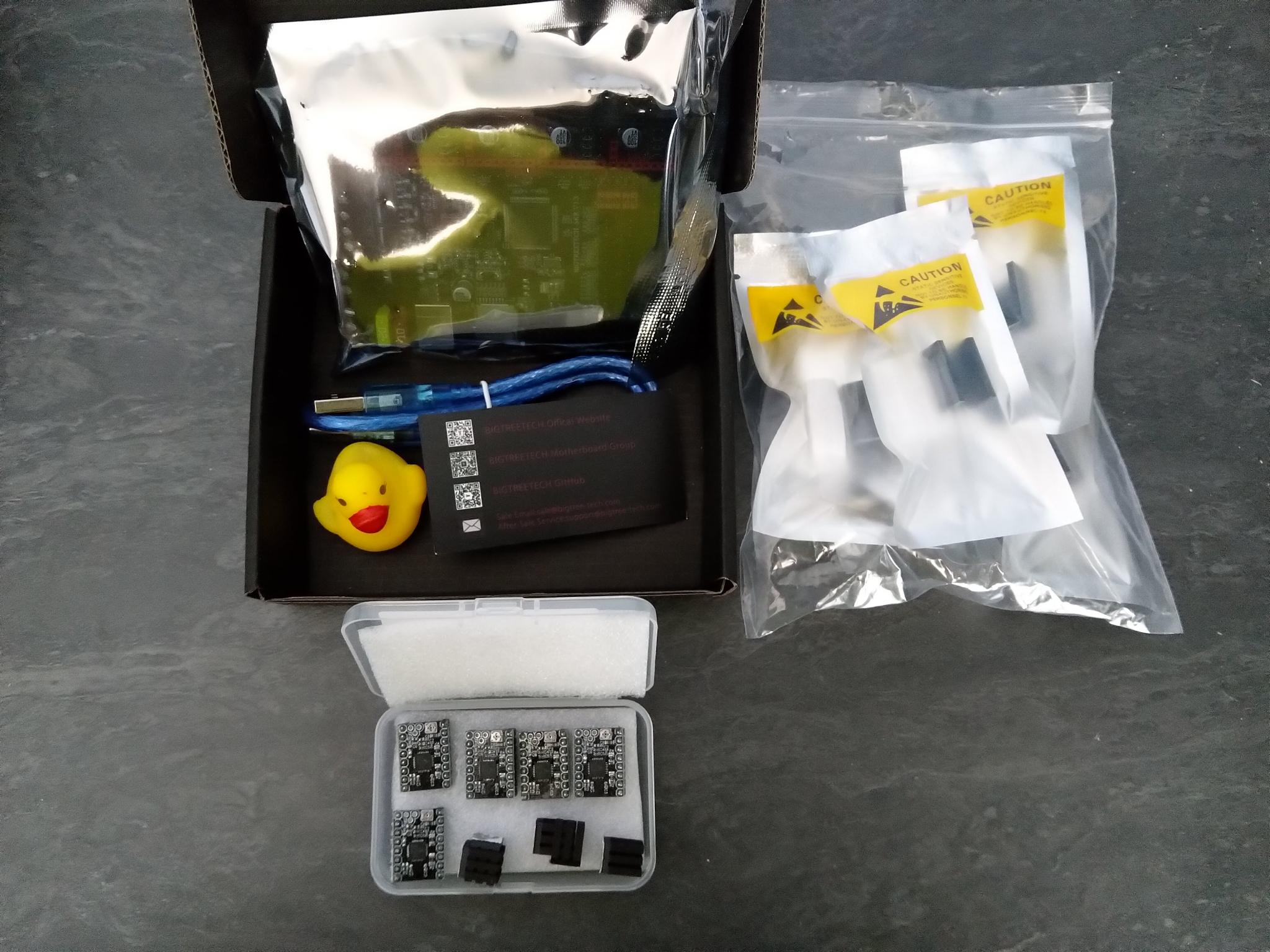

Alors... oui... normalement une micro SD est fourni avec la carte... cependant, j'en ai acheté une 2e par sécurité (d'après les retours sur les réseaux sociaux, la carte fourni est pas top top, et les premiers ayant reçu la carte ont vite changé la carte micro SD fourni par une nouvelle).
Et... oui je pensais éventuellement plus prudent de faire une copie du contenu de la carte fourni.

Lien vers le commentaire
Partager sur d’autres sites

Il y a 2 heures, Bosco2509 a dit :

. et j'hésite si il faut faire une installation "STEP/DIR Mode" ou "UART-Mode"... la différence réside sur la position des cavaliers à installer :

Bonjour à tous !

Bonjour @Bosco2509 !!

Bon, j'espère que tu ne m'en voudra pas de mon ignorance !

Mais j'ai pas compris la différence entre les deux positions des cavaliers !!

Hervé

Lien vers le commentaire
Partager sur d’autres sites

il y a 18 minutes, Hervé-34 a dit :

Bonjour à tous !

Bonjour @Bosco2509 !!

Bon, j'espère que tu ne m'en voudra pas de mon ignorance !

Mais j'ai pas compris la différence entre les deux positions des cavaliers !!

Hervé

Pareil... j'ai beau chercher des infos... je trouve rien... je ne comprend pas non plus la différence entre ces 2 modes... 😁
n'ayant pas encore la carte en main, je peut pas essayer de voir la différence... 😑

Lien vers le commentaire
Partager sur d’autres sites

Bonjour,

la difference entre uart/step-dir est principalement :

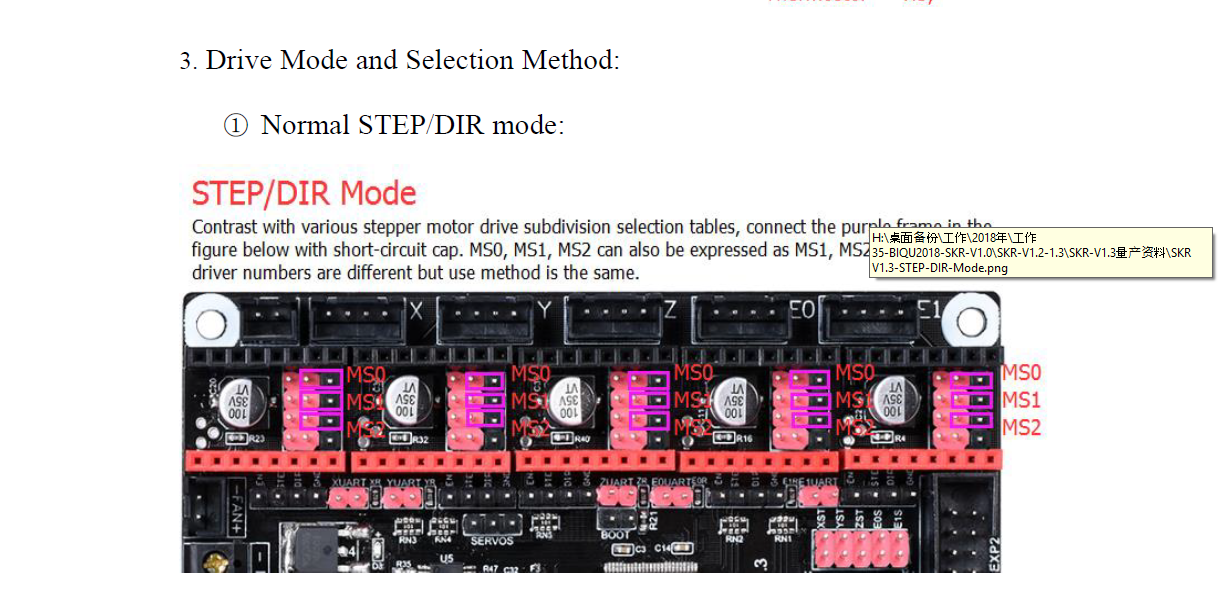

  • en step/dir , c'est la position des cavalier MS1/2/3 qui determinera le pas des drivers ( en general 16 microsteps quand MS1/2/3 sont pontés ), le reste des parametres sera géré par la programmation du driver , c'est aussi le mode que l'on appelle "standalone". Tu mets en place le driver et c'est fini.

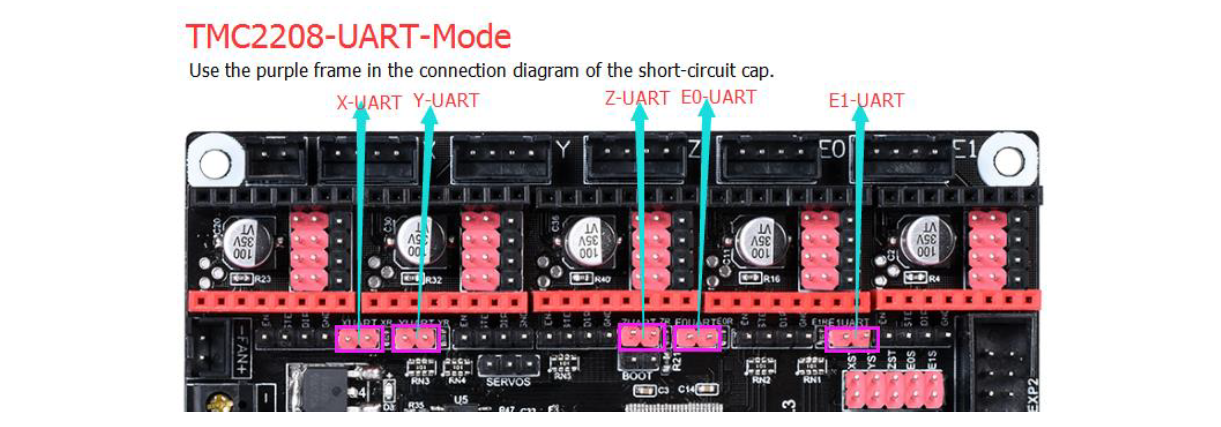

  • En uart , les drivers seront controlés logiciellement , tu pourras regler l'intensité , le mode stealchop , et plein d'autres choses via des commandes Gcode donc oui , il vaut mieux utiliser ce mode , surtout avec ce type de carte ou ca se fait avec des jumpers .
  • Merci ! 1
Lien vers le commentaire
Partager sur d’autres sites

Un grand merci @Snakesrules !

  1. J'étais dans le noir complet et je comprenais pas la différence, et ton explication claire et précise me renseigne parfaitement.
  2. Je me coucherais moins bête ce soir. 😁
  3. Je préviligierais en "Step/Dir", car non seulement plus simple, mais j'ai pas besoin d'user du fer à souder... car oui le mode UART, il est indiqué, sur la notice, d'effectuer une petite soudure sur le driver moteur TMC2208 > une chose de moins que je n'aurais pas à faire.
    Mais si tu recommande ce mode UART... je vais tout même réfléchir... et puis, une soudure c'est pas grand chose non plus.

Edit concernant la soudure à réaliser :


Modifié (le) par Bosco2509
Lien vers le commentaire
Partager sur d’autres sites

il y a 3 minutes, doby02 a dit :

intéressant ce sujet

sur ali j'ai trouvé ça

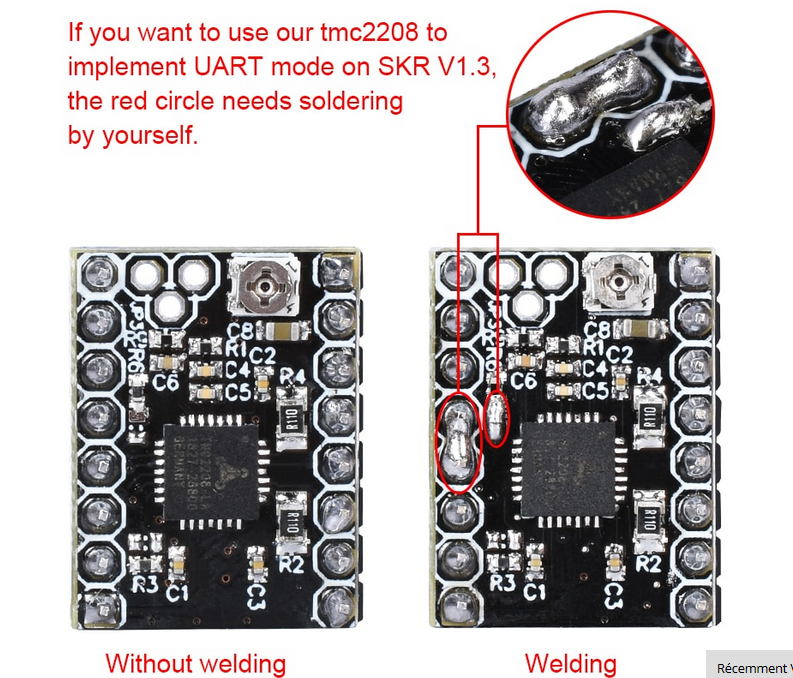

SKR V1.3 instructions D'utilisation:

Https://www.dropbox.com/s/x3cgq7tqbhk2yfd/SKR%20V1.3-Instructions.pdf?dl=0





Marlin2.0-Pilote Smoothieware Drive

Https://www.dropbox.com/sh/0dryz9lvtnr62z0/AAACZTh2iTolNNT0Pya7VhRPa?dl=0

Tant mieux si tu trouve ce sujet intéressant... si il était ennuyant se serait embêtant...

Oui... c'est le Marlin 2.0 (générique) prévu pour la carte... je l'ai téléchargé au cas où... mais cela reste un Marlin "pour utilisateur averti".

Lien vers le commentaire
Partager sur d’autres sites

il y a 2 minutes, Snakesrules a dit :

@Bosco2509 : tu as commandé les drivers en même temps que la carte ? si oui , en general , ils les livrent prédisposés pour le mode UART , ca coute rien de vérifier quand tu recevras le colis 🙂

Hum... c'est bien si ils me les envoient prédisposés pour le mode UART... je dirais pas non... et si c'est pas le cas... c'est pas gravissime non plus...
Oui, j'ai commandé le "Pack/Lot Carte + Drivers TMC2208" et... j'ai complété ma commande avec des silencieux.

Je ne sait pas si les silencieux serviront... mais je les aurais au cas où...
Qui ne tente rien n'a rien comme dit le dictons...

Lien vers le commentaire
Partager sur d’autres sites

Honnetement , j'ai une machine en 2208 et l'autre en 2130 , tu verras , ca se passe de commentaires , pas besoin de silencieux , sauf maintenant sur les ventilos et l'alim 🙂

Lien vers le commentaire
Partager sur d’autres sites

il y a 10 minutes, Bosco2509 a dit :


Oui, j'ai commandé le "Pack/Lot Carte + Drivers TMC2208" et... j'ai complété ma commande avec des silencieux.

Je ne sait pas si les silencieux serviront... mais je les aurais au cas où...


Il indique également que ce sont des protections. J'ai déjà lu quelques part que les tmc2208 n'aimaient pas que le moteur se transforme en generatrice chose qui arrive souvent lorsque l'on bouge nos axes à la main. Peu être que ce type de module protège les 2208 de ce risque.

Lien vers le commentaire
Partager sur d’autres sites

il y a 24 minutes, doby02 a dit :

Peu être que ce type de module protège les 2208 de ce risque.

Exactement. La description est "erronée", ce sont des protections (driver protector) (silent step stick traduit par "silencieux"; ce sont les TMC2208 /TMC2130 qui sont en fait les pilotes pas-à-pas "silencieux" 😉) . En fait ce sont des diodes qui sont installées sur le PCB. Le seul inconvénient que je vois, c'est que ça augmente la hauteur de la carte les pilotes s’enfichent dans ces protections qui elles sont enfichées sur la carte mère.

Lien vers le commentaire
Partager sur d’autres sites

En fait c'est aussi un avantage de surélever les drivers: plus facile à refroidir avec cet espace bien dégagé en dessous et surélevé des câbles et autres trucs qui trainent.

Ces SilentStepStick protectors sont conseillés par Waterott (fabriquant genuine des TMC2XXX),  à la base c'est un design de eux. A ne pas confondre non plus avec des Smoother qui sont aussi des diodes mais qui ne renvoient pas vers la masse et n'ont pas la même fonction.

Modifié (le) par Tircown
Lien vers le commentaire
Partager sur d’autres sites

Je le savais que les "silencieux" servaient à protéger les drivers... mais au moins vous me le confirmer.
Au moins les drivers seront protégés et surélevés, ainsi mieux refroidit par le ventilo...

PS : maintenant... c'est à la boutique de me l'envoyer... ils faudraient qu'il se bouge de ce côté là... je viens de prolonger le traitement de la commande de 15 jours...

Lien vers le commentaire
Partager sur d’autres sites

il y a 36 minutes, Bosco2509 a dit :

PS : maintenant... c'est à la boutique de me l'envoyer... ils faudraient qu'il se bouge de ce côté là... je viens de prolonger le traitement de la commande de 15 jours...

Pourquoi tu as fais ça ??

Hervé

Lien vers le commentaire
Partager sur d’autres sites

il y a 5 minutes, Hervé-34 a dit :

Pourquoi tu as fais ça ??

Hervé

Car il ne restait plus que 24h avant expiration du délai de traitement de la commande (après quoi j'aurais été remboursé) et que la boutique m'a prévenu qu'il aurait du retard, et que si je souhaitais la recevoir de bien vouloir patienter un peu plus., car ils auront un nouvel arrivage très prochainement.
Voilà tout.

Lien vers le commentaire
Partager sur d’autres sites

  • 3 weeks later...

Et voilà... Papa Noël est passé !
Houla... je disjoncte... non ce n'est pas Papa Noël sur son traineau qui est passé... mais le facteur dans sa voiture jaune qui est passé (2 fois... la première fois, il est passé sans s'arrêter... et est revenu 30 minutes plus tard).

Voilà donc la carte :



Hormis les TMC2208 (version V2.0, c'est indiqué dessus)... tout est sous scellé hermétiquement... donc je vais pas y toucher pour l'instant.

Oui ! Je le confirme... vous ne rêvez pas !
Il y a bien un petit canard !
Il est livré avec la carte... je vous dirais : Le Zimpure est livré un paquet de bonbons. La SKR V1.3, elle est livré avec un petit canard en plastique.

Les protecteurs moteurs sont également là... sous scellés... et je note qu'il est indiqué "Uniquement pour axe X Y".
J'en ai 5 (+5 autres qui me seront livrés plus tard)... tampis... j'aurais des rechanges... et/ou j'en revendrais peut-être quelques-uns à prix coûtant.
Mais j'ai un doute sur cette indication concernant "Uniquement pour axe X Y".

Il me manque qu'une chose : une imprimante ! 🤣

Je n'ai pas l'intention de monter cette carte dans l'immédiat. Je la garde en cas de soucis. J'aurais déjà une carte de rechange.

PS : là je viens de passer 4 heures à démonter le caisson de mon ancienne imprimante. J'ai remesuré 6 fois... le caisson est 1,8 fois trop grand (pour une Geetech A10 et/ou une Ender-3)... j'ai donc pris la décision de démonter mon caisson.

Modifié (le) par Bosco2509
Lien vers le commentaire
Partager sur d’autres sites

Et tu as même reçu de quoi t'amuser dans ton bain, le temps que l'imprimante arrive.



Elle est pas belle la vie ?



😄

  • Haha 2
Lien vers le commentaire
Partager sur d’autres sites

Tu me diras ce que toi tu as pût voir en regardant les "Pin"... mais à première vue... pour le branchement des TMC2208, c'est :

  1. Noir sur Noir
  2. Bleu sur Rouge

De toute évidence... les soudures pour UART n'ont pas été faites sur les TMC2208... tant mieux cela m'arrange.

Pour les protecteurs moteur... je peut rien voir à travers l'emballage (c'est flou)... je vérifierai avant de monter.

Lien vers le commentaire
Partager sur d’autres sites

il y a une heure, Bosco2509 a dit :

pour le branchement des TMC2208,

Fie toi plutôt aux pins sur la CM et sur le 2208 (GND et DIR), sinon demande à @Jean-Claude Garnier ce qui se passe quand on les monte à l'envers 😉 .

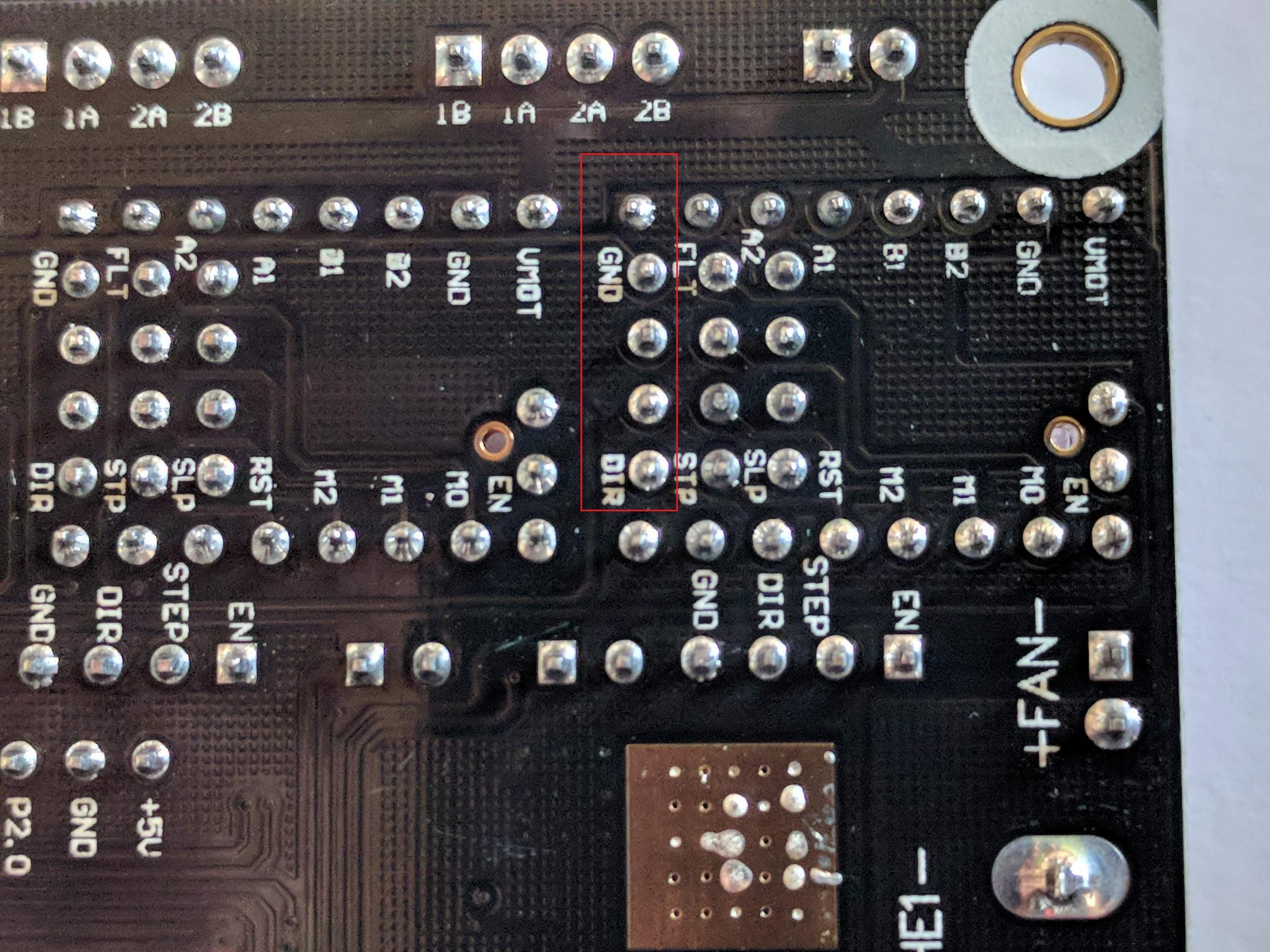

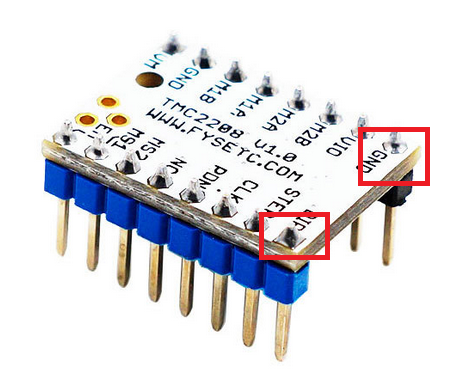

464726299_TMC2208-GND-DIR_FYSETCWIKI.png.e425f94ffa1ae9bb6d5dd172ce1faaf2.pngskr_v13_pcb_dir-gnd.thumb.jpg.04de1c9716b01f6af03f62233bbeca17.jpg

Lien vers le commentaire
Partager sur d’autres sites

Créer un compte ou se connecter pour commenter

Vous devez être membre afin de pouvoir déposer un commentaire

Créer un compte

Créez un compte sur notre communauté. C’est facile !

Créer un nouveau compte

Se connecter

Vous avez déjà un compte ? Connectez-vous ici.

Connectez-vous maintenant
×
×
  • Créer...
